Product Overview

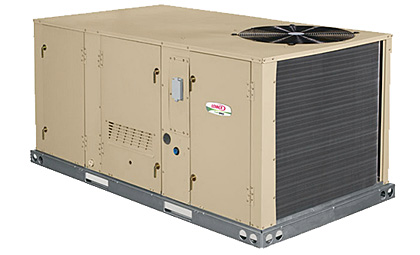

ZGB060S4B

Raider® Rooftop Units Standard Efficiency 3-6 tons

Packaged Gas/Electric 60 hz and 50 hz

Value Without Compromise

Efficiency

• 13.0 SEER, up to 11.5 EER and up to 13.2 IEER

• 3 to 12.5-ton gas/electric and electric/electric configurations and 3 to 5-ton heat pump configurations

• Available MSAV® supply fan provides year-round savings and comfort with reduced energy consumption, improved indoor air quality and code compliance

• Meets ASHRAE 90.1 standard efficiency rating

Compatibility

• Up to $1,500* in savings per unit on many replacement jobs where the Raider unit matches the footprint, eliminating the use of an adaptor curb and moving electrical and plumbing connections

• Footprint is compatible with 20+ years of existing units, eliminating cost of adaptor curb in many jobs

• Matches existing electrical and plumbing connections, reducing installation costs in many jobs

• Up to 18% lighter weight than units in its class helps prevent structural engineering costs

• Optional BACnet, the industry's leading networking protocol, for seamless integration with building automation systems

Reliability

• Over 200 quality checkpoints per unit, including four independent state-of-the-art refrigerant leak tests

• Standard EnvironT. Coil System uses up to 52% less refrigerant, is up to 59% lighter and has up to 20% fewer brazed joints than typical rooftop units

• Full perimeter base rail provides greater structural integrity, so the unit is easier to handle when rigging and transporting

• High pressure switch improves reliability by safeguarding compressor from extreme operating conditions

• Scroll compressor is standard on all units and provides reliable long term operation

• Predefined supply fan motor/drive combinations make selecting components to meet static and airflow requirements quick and easy

Availability

• Early 2013 availability through Lennox commercial distribution facilities and select Lennox PartsPlus® stores

• Same day delivery available in many major markets

• Distribution network reaches 98% of North America within 48 hours

• Dedicated hotline provides quotes within minutes**

Serviceability

• Easy filter replacement through tool-less access panels

• Gas compartment access panel provides easy access to all gas valves

• Compressor compartment door allows system checks without the need of removing panels

• Fork slots on three sides make it easy to pick up and transport units from almost any angle

• Electrical lines can be brought through the unit base or horizontal access knock-outs for fast, easy installation

• 2013 ACHR News Dealer Design Awards "Silver" Winner in the Light Commercial HVAC category
